TAZER MX EXPERT

The INTENSE Tazer MX Expert build offers the proven Tazer chassis with a Shimano Steps E7000 motor system
All components have been carefully selected to offer a confident riding experience for all levels
The suspension on the Expert build is less aggressive, with a 160mm travel single crown DVO diamond fork and DVO Jade coil shock
Comes with a torque wrench and tool set for assembly
Rear fender, underside bash guard and chainstay protectors also included
Class 1 e-Bike
Build Specs
Frame — Carbon fiber front and rear triangle with internal cable routing
Fork — DVO Diamond E3, single crown, 160 mm travel
Shock — DVO Jade Coil, 155 mm travel, high/low speed compression adjustment
Motor — Shimano Steps E7000 with up to 60 Nm of torque
Battery — BT-E8010, for Steps, 504 Wh – Battery lock w/2 keys – up to 62 miles of range – up to 1000 recharge cycles without significant capacity loss
Display — Shimano SC7000 – Multiple power output options: Eco, Trail, Boost, & Walk
Brakes — TRP Trail EVO with 203 mm R1 rotors front and back
Shifter — Shimano Deore 12-speed
Derailleur — Shimano Deore 12-speed
Cranks — E*thirteen E*spec 34 tooth chainring 165 mm length
Cassette — Shimano Deore 12-speed 11-51 tooth
Chain — Shimano Deore 12-speed
Wheelset — E*thirteen E*spec alloy rim 30 mm rim width x 29” front / 35mm rim width x 27.5” rear
Hubs — INTENSE E-specific alloy hubs
Tires — Maxxis Minion DHR II Maxx Terra 3C EXO+ 29” x 2.60” Front / 27.5” x 2.8” Rear

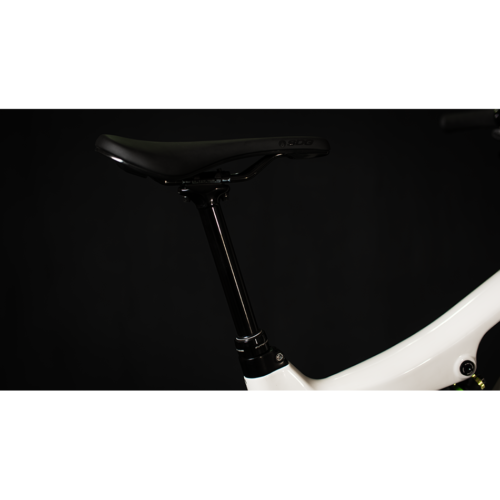

Seatpost — INTENSE Recon Dropper Post
Saddle — SDG Bel-Air Saddle

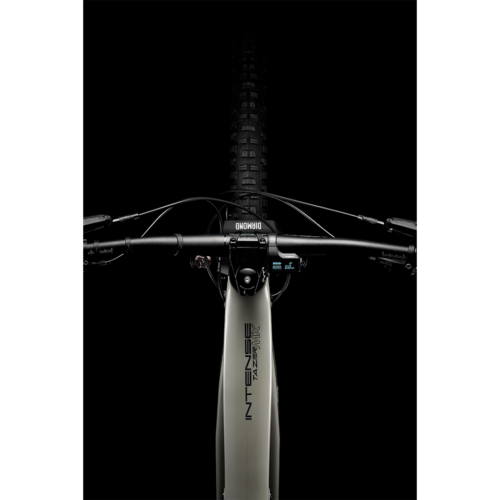

Handlebar — INTENSE Recon 35 mm OD x 800 mm wide, 30 mm rise
Stem — INTENSE 35 mm OD x 45 mm length
Grips — INTENSE Lock-on
Weight — 51 lbs 12 oz (size S/M, tubeless, with pedals)
