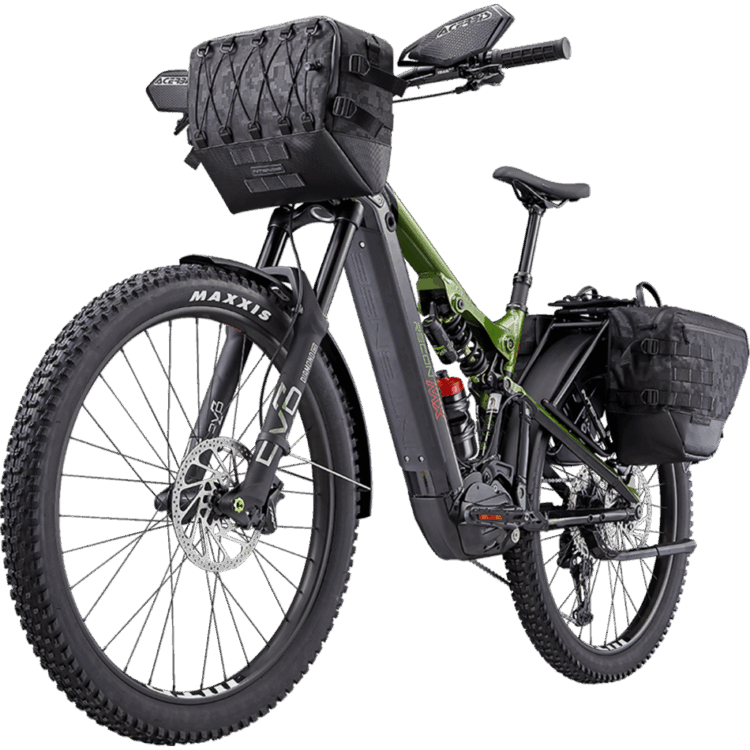

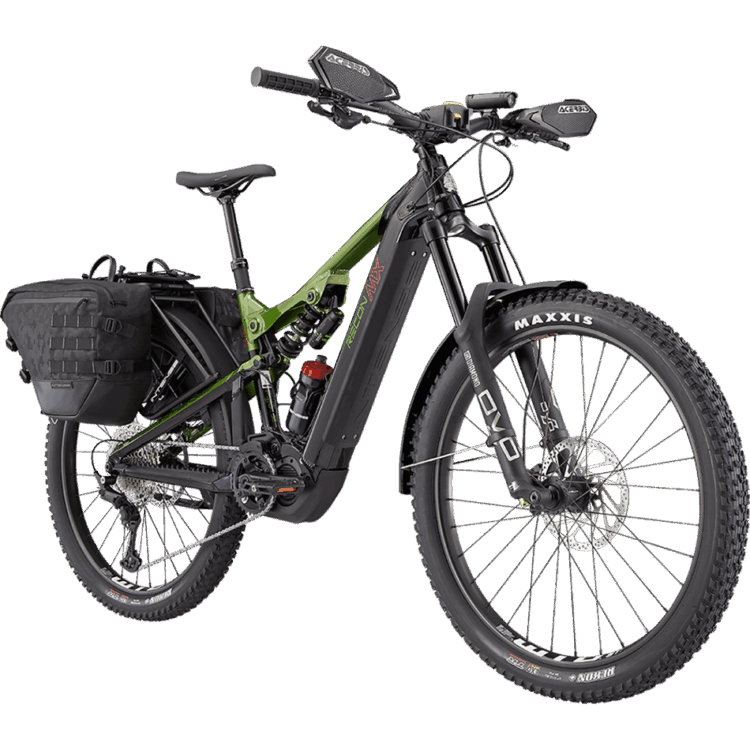

Built on 27.5" wheels with a custom rack and bag set, this bike is ready for the ultimate adventure.
Aluminum frame designed for extra durability on long endurance rides.
Shimano Steps LCD Display – Interact with your Shimano motor and battery system through Shimano’s sleek display of the electric system. Rider’s can see battery life, speed and power assist mode from the home screen.

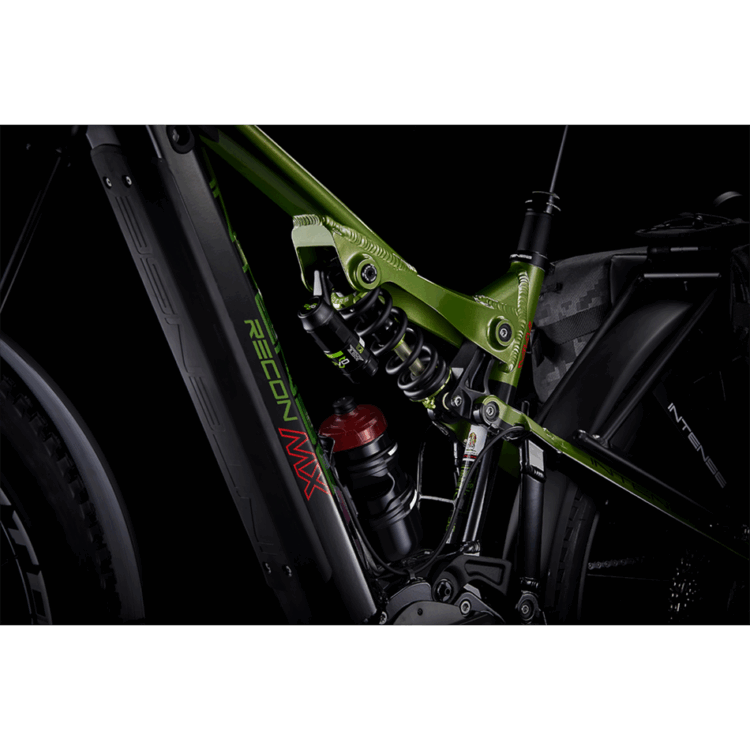

DVO Suspension Platform – 160 mm DVO Diamond E3 single crown fork on the front and DVO Jade R coil on the rear to give you all the travel you need for your adventure.
Integrated Battery – With a compact design, the Shimano 504 Wh battery is stored in the frame’s downtube and can be charged directly while still installed in the bike.
Front and Rear Fenders – We use front and rear fenders on the Recon MX to protect the bike and rider from rock strikes and trail debris.
Internal Cable Routing – Internal routing for shifter, dropper post, rear brake and display cables, making the Recon MX neat, tidy and noise-free.
Visible ON/OFF Switch – The power ON/OFF switch is located in a visible location on the top of the toptube of the frame for easy accessibility to power the bike on or off.
WTB 27.5" Wheels – The WTB ST I35 TCS 2.0 35 mm rims are spec’d front and rear to get you where you need to go.
Shimano Deore 11-speed Gears – Effortless and dependable shifting from Shimano.

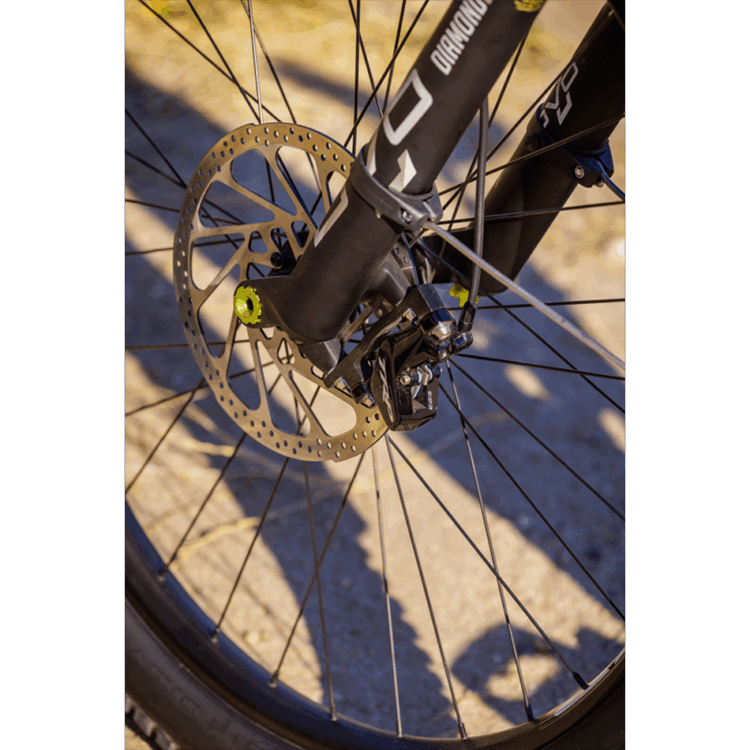

TRP Trail EVO Brakes – The TRP Trail EVO brakes provide powerful stopping power coupled with the 203 mm front/rear rotors.
Intense Recon Dropper – The INTENSE dropper post allows quick adjustment of the saddle height while on the bike.
Shimano E7000 Motor – The powerful Shimano E7000 motor allows for 3 power-assist modes and a walk mode.
WTB Volt Saddle – The WTB Volt saddle is shaped for speed and comfort. It features medium padding thickness and subtle curves to push against while pedaling.
Maxxis Rekon Tires – The Maxxis Rekon 3C EXO+ 27.5" x 2.80" tires come tubeless ready. Designed for trail use in technical terrain, these tires can handle loose or hardpacked trails.
Build Specs
Display – Shimano SC-E7000
Switch – Shimano SW-E7000-L
Fork – DVO Diamond E3 29", 160 mm, 44 mm rake
Shock – DVO Jade R Coil, 140 mm travel, 185 x 55 mm
Wheelset – WTB ST I35 TCS 27.5", 35 mm front/rear, Intense E-MTN Alloy hubs
Rear Derailleur – Shimano RD-M5100 Deore 11-speed
Shifter – Shimano SL-M5100 Deore 11-speed
Crank – Shimano CS-M5100 11-speed, 11-51T
Chain – KMC E 11-speed
Brakes – TRP HD-M843 Trail EVO
Rotors – TRP 203 mm front/rear
Post – Intense Recon Dropper 31.6 mm
Tires – Maxxis Rekon 27.5 x 2.80" 3C, EXO+, TR
Headset – Intense ZS49/ZS56
Bar – Intense Recon 35 Alloy 800 mm, 30 mm rise
Stem – Intense Recon 35 Alloy 45 mm
Grips – Intense Lock-on
Seat – WTB Volt
Peso | 83 lbs |
---|---|
E-BIKE_Size | L/XLG, S/M |
Productos relacionados

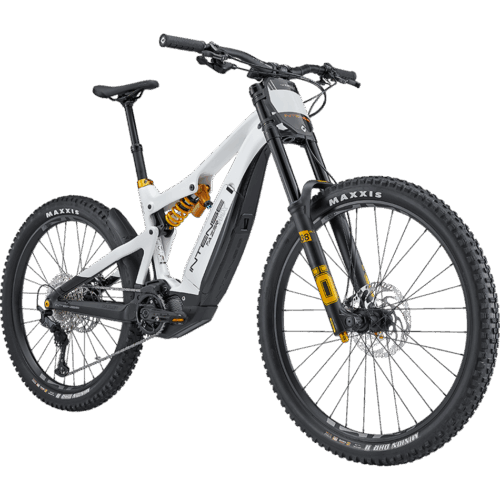

E-BIKE TAZERMX ALLOY EXPERT
