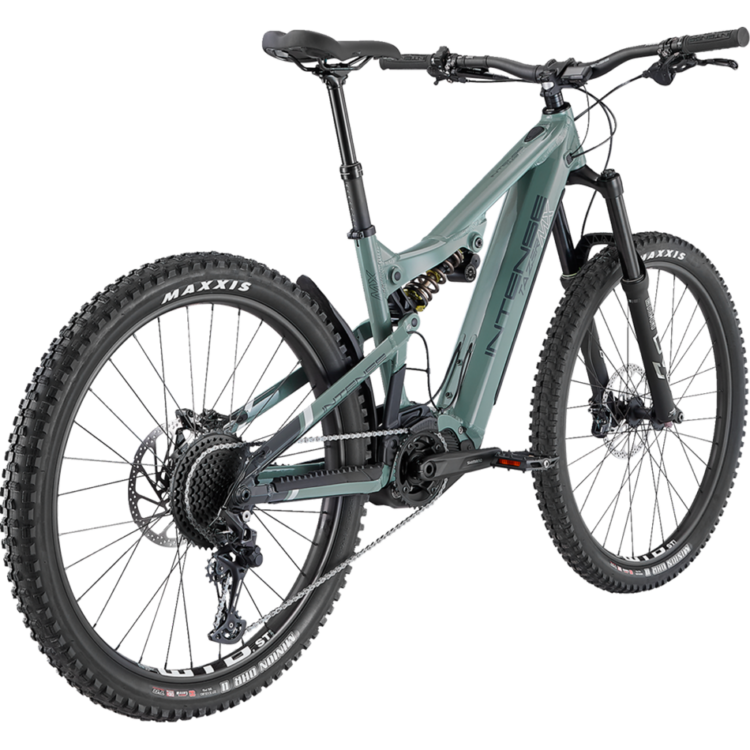

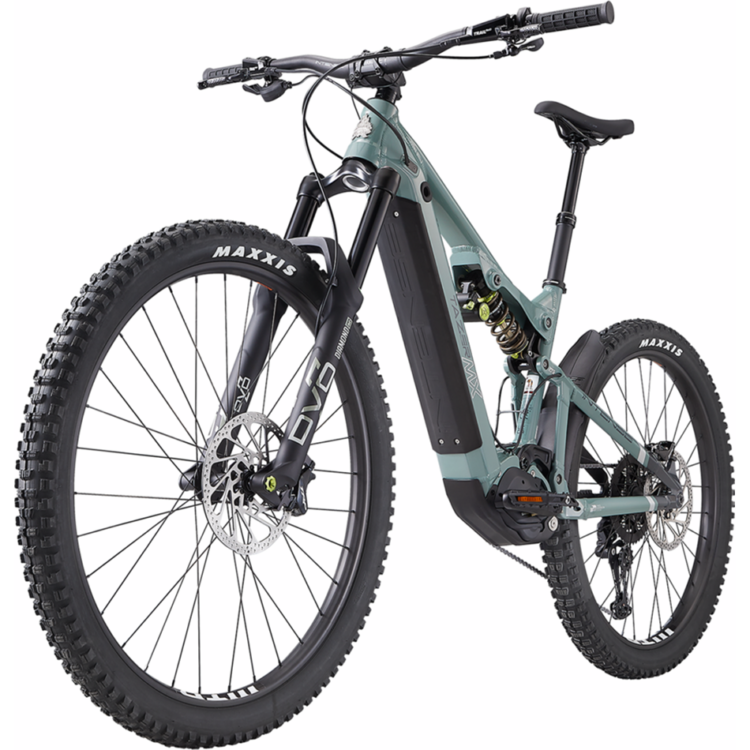

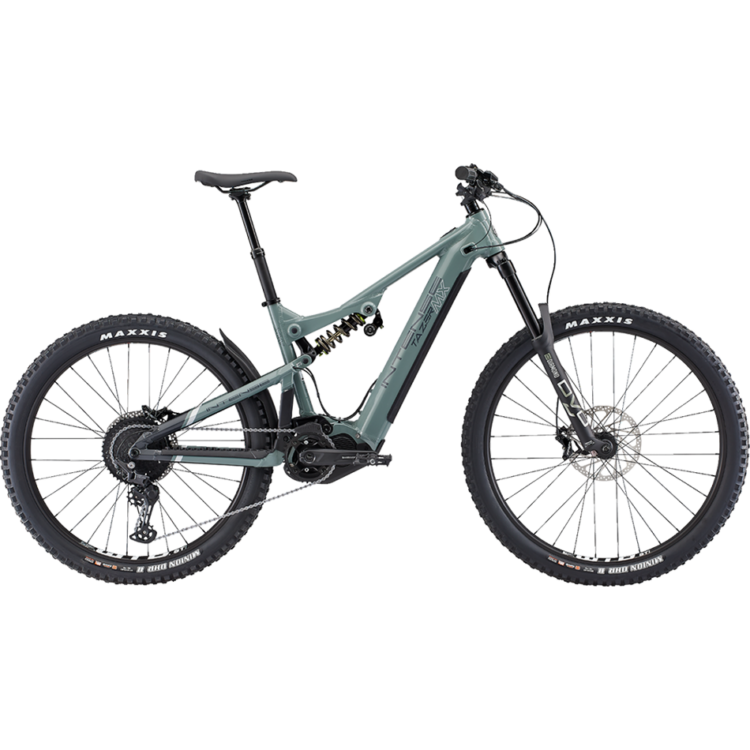

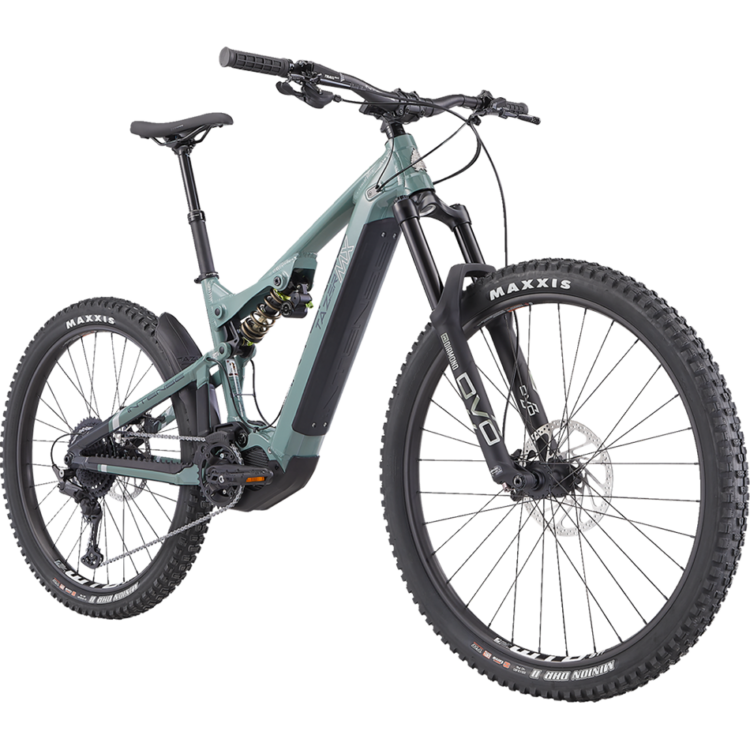

TAZERMX ALLOY EXPERT

Offers the proven Tazer chassis with a Shimano motor system
Suspension features a 160 mm travel single crown DVO diamond fork and DVO Jade coil shock
All components have been carefully selected to offer a confident riding experience for all levels
Build Specs
Frame — Alloy front and rear triangle with internal/external cable routing
Fork — DVO Diamond E3, single crown, 160 mm travel
Shock — DVO Jade X E3 coil, 155 mm travel, high/low speed compression adjustment
Motor — Shimano Steps EP600
Battery — 504 Wh. Intube battery lock with two keys
Display — Shimano Steps LCD
Brakes — TRP HD-M843 Trail EVO, 203 mm rotors front and rear
Shifter & Derailleur — Shimano Deore 11-speed
Cranks — e*thirteen e*spec 34 tooth chainring 165 mm length
Cassette — e*thirteen TRS Plus 11-speed 9-46 tooth
Chain — KMC E11S
Wheelset — WTB ST I30 TCS 2.0 30 mm, 29” front / WTB ST I35 TCS 2.0 35 mm, 27.5” rear
Hubs — INTENSE MTN (INTENSE E-MTN Alloy Hubs)
Tires — Maxxis Minion DHR II Maxx Terra 3C EXO+ 29” x 2.60” Front / 27.5” x 2.80” Rear
Seatpost — INTENSE Recon Dropper Post
Saddle — WTB Volt Saddle
Handlebar — INTENSE Recon 35 mm OD x 800 mm wide, 30 mm rise
Stem — INTENSE 35 mm OD x 45 mm length
Grips — INTENSE Lock-on
